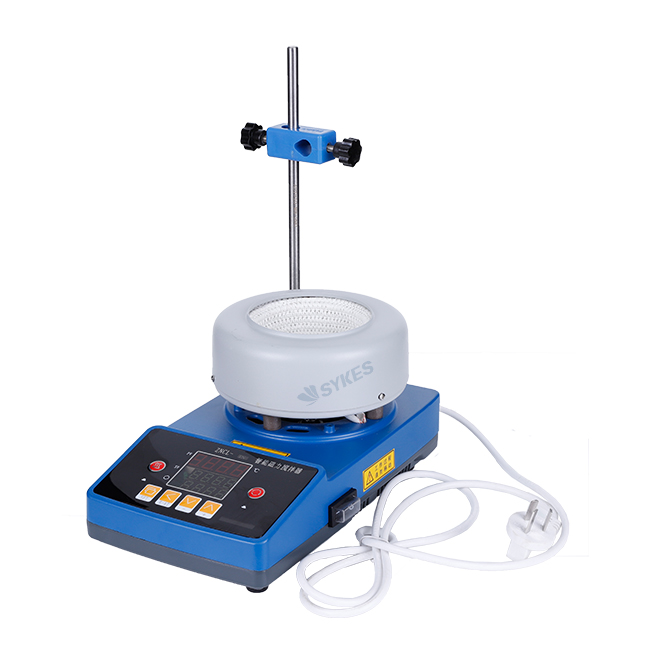

Brief Introduction

ZNCL-TS series electric heating mantles are made of alkali-free glass fiber insulation material, the Cr20Ni80 alloy wire spring installed in them, with aluminum silicate cotton by the vacuum shape of the hemispherical insulation body insulation. Each mantle is made with extreme care and is hand sewn to assure its reliability, quality and safety. Maximum heat transfer to the sample is achieved by having excellent insulation around the cartridge and good flask coverage.

Main Features

1. Temperature range : ambient to 380 ℃ . PID control as well as inner and outer thermocouple .

2. LCD and digital display for temperature Speed add , reduce and set. LCD Display for stirring speed add and reduce .

3. Stirring is Independently controlled with a variable speed control up to 1800rpm !

4. Capacity: 50ml - 20000ml for round bottom flasks.
